Solarmate Solar Water Heater



SolarMate is committed to providing our customers with complete tranquility Solarmate service after-sales service and Solarmate support, pre-delivery and Solar mate installation features. In addition, Solarmate price is lower than other brands in market with higher specification and better quality control by solar mate sdn bhd.
• Malaysia’s most extensive experience
• Excellent customer reviews
• Reliable customer support team
• In house installers and maintenance personnel.
• Ongoing R&D

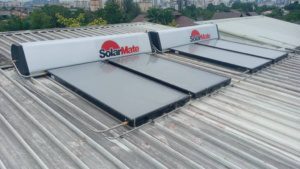

Solarmate Solar Water Heater

Pioneer manufacturer of solar water heating system in Malaysia, SolarMate has been providing hot water heating systems for the entire region Countries used for residential and commercial development more than 40 years.

Domestic hot water accounts for a large proportion greenhouse gases emitted by Malaysian households. SolarMate solar water heating system can greatly reduce greenhouse gas emissions per megawatt. It saves 1 hour of electricity and avoids 1 ton of harmful carbon dioxide emissions.

Solarmate Price

How much do I save by installing a solar hot water system for my house?

A solar hot water system would save you about RM1,000 per system of your yearly water heating bill. The exact amount of savings depends upon the size of your family, the way you currently heat your water and the size of your new solar hot water system.

Technical Spec

Solarmate Specification

Specification SM-180C SM-300C
Storage Capacity 180 L 300 L
Tank Dimension 1680 x 520 x 457mm 2680 x 520 x 457mm
Approx. weight (dry) 38kg 56kg
Approx. weight (operating) 218kg 356kg
Outer Cain Material 0.7mm Aluminum / 0.45mm Zincalume
Base Plate Material 0.5mm Aluminum
Tank Insulation High Density Cosmonaut Foam (CFC Free)
End Cover Material Polyethylene UV Protected
Cylinder Materia 12 mm AISI Stainless Steel
Nominal Working Pressure 400 kPa
Test Pressure 1050kPa
Laminar Flow Stratifier Stainless Steel
Dimension 2000 x 1000 x 80mm
Cover Material 4.0mm Tempered Glass
Heat Transfer Coefficiet 4.398
Weight 35kg
Frame Material Aluminum Alloy Anodized
Back Plate 0.4mm Galvanized Steel
Sealing Gasket Triple Layer Silicone
Material Aluminum Plate
Suface Treatment Black Chrome
Tube Material Copper TP2
Header Tub 22mm x 0.6mm 2pcs
Riser Tub 10mm x 0.45mm 8pcs
Absorption Rate 0.94
Emittance 0.12
Insulation Density 24 kg/m³

Service & Repair

Solarmate Authorized Service Center

Address: 165G, Jalan PUJ 3/3, Taman Puncak Jalil, 43300 Seri Kembangan, Selangor

Office: 03-95437431

Phone: 012-2332243 / 012-3321190


Solarmate Service & Repair

We solve brand SOLARMATE common problems like:  Booster tripped, Back up heater not function, not hot, panel leaking, pressure temperature relief valve not functioning, water tank leaking and others problems.

We supply and install SOLARMATE spare parts like: Heating element, Thermostat, Pressure Temperature Relief Valve (PT Valve), Check Valve (Non Return Valve.

We provide SOLARMATE FULL service & maintenance like: Cleans the tank external and internally to clear all the mud, dirts and rusted water, cleans the solar panel glass, clear the mud, dirts and rusted water inside the solar panel riser tubes, replace check valves and check leaking fitting and pipings.

Dealing with: Plumber, Contractor, Designer, Installer, Supplier, Manufacturer, Dealers, Distributor and Architects.

For service and maintenance, please Click HERE to contact us. Thanks
Solarmate repair contact number
Call or Whatsapp  Loy 012-2332243


Our Service Technician Team is trained by some of the most reputable manufacturers in the industry brands:

Call us at 012-233 2243 (Loy)

Our company do Solarmate service maintenance and spare part replace.
Solarmate spare parts such as:-

  • Solarmate Heating element
  • Solarmate Thermostat
  • Solarmate Pressure temperature Valve (solarmate relief valve)
  • Solarmate Solar Water Tank
  • Solarmate Solar Panel

We do site inspection for Solarmate Water Heater’s problems, such as

  • Solarmate leaking
  • Solarmate booster tripped
  • Solarmate backup heater not function
  • Solarmate solar heater not hot.

Our Coverage

Our coverage Area for solar mate service nearby

Ampang Hilir . Bandar Damai Perdana . Bandar Menjalara . Bandar Tasik Selatan . Bangsar . Bangsar South . Batu . Brickfields . Bukit Bintang . Bukit Jalil . Bukit Ledang . Bukit Persekutuan . Bukit Tunku . Cheras . City Centre . Country Heights . Country Heights Damansara . Damansara . Damansara Heights . Desa Pandan . Desa Parkcity . Desa Petaling . Gombak . Jalan Ampang . Jalan Ipoh . Jalan Kuching . Jalan Sultan Ismail . Jinjang . Kenny Hills . Kepong . Keramat . KL City . KL Sentral . KLCC . Kuchai Lama . Mid Valley City . Mont Kiara . Old Klang Road . OUG . Pandan Indah . Pandan Jaya . Pandan Perdana . Pantai . Pekan Batu . Puchong . Salak Selatan . Segambut . Sentul . Seputeh . Serdang . Setapak . Setia Eco Park . Setiawangsa . Solaris Dutamas . Sri Damansara . Sri Hartamas . Sri Petaling . Sungai Besi . Sungai Penchala . Taman Desa . Taman Duta . Taman Melawati . Taman Tun Dr Ismail . Taman Permata . Titiwangsa . TPM . Wangsa Maju

Alam Impian . Aman Perdana . Ampang . Ambang Botanic . Ara Damansara . Balakong . Bandar Botanic . Bandar Bukit Raja . Bandar Bukit Tinggi . Bandar Kinrara . Bandar Puteri Klang . Bandar Puteri Puchong . Bandar Saujana Putra . Bandar Sungai Long . Bandar Sunway . Bandar Utama . Bangi . Banting . Batang Berjuntai . Batang Kali . Batu Arang . Batu Caves . Beranang . Bukit Antarabangsa . Bukit Beruntung . Bukit Jelutong . Bukit Rahman Putra . Bukit Rotan . Bukit Subang . Cheras . Country Heights . Cyberjaya . Damansara Damai . Damansara Intan . Damansara Jaya . Damansara Kim . Damansara Perdana . Damansara Utama . Denai Alam . Dengkil . Glenmarie . Gombak . Hulu Langat . Hulu Selangor . Jenjarom . Kajang . Kapar . Kayu Ara . Kelana Jaya . Kerling . Klang . Kota Damansara . Kota Emerald . Kota Kemuning . Kuala Kubu Baru . Kuala Langat . Kuala Selangor . Kuang . Mutiara Damansara . Petaling Jaya . Port Klang . Puchong . Puchong South . Pulau Indah . Pulau Carey . Pulau Ketam . Puncak Alam . Puncak Jalil . Putra Heights . Rasa . Rawang . Sabak Bernam . Salak Tinggi . Saujana . Saujana Utama . Sekinchan . Selayang . Semenyih . Sepang . Serdang . Serendah . Seri Kembangan . Setia Alam . Setia Eco Park . Shah Alam . SierraMas . SS2 . Subang Bestari . Subang Heights . Subang Jaya . Subang Perdana . Sungai Ayer Tawar . Sungai Besar . Sungai Buloh . Sungai Pelek . Taman TTDI Jaya . Tanjong Karang . Tanjong Sepat . Telok Panglima Garang . Tropicana . Ulu Klang . USJ . USJ Heights . Valencia

Negeri Sembilan:
Seremban, Senawang, Port Dickson, Rembau, Bahau, Nilai, Mantin, Labu and Sepang.

Tampin, Masjid Tanah, Alor Gajah, Sungai Udang, Tanjung Kling, Malacca, Bukit Katil, Ayer Keroh, Batu Berendam, Cheng, Durian Tunggal, Merlimau, Bemban, Jasin, Krubong, Klebang, Kota laksamana and Krubong

Muar, Batu Pahat, Labis, Yong Peng, Tangkak, Kluang, Kulai, Ulu Tiram, Skudai, Senai, Pontian, Nusajaya, Pasir Kudang, Kukup, Gelang Patah, Kota tinggi, Ayer Tawah, Johor Jaya, Bukit Indah, Taman Universiti, Setia Tropika, Nusa Bestari, Taman molek, Mount Austin, Pelangi Indah, and Taman Pelangi.



BWS Sales & Services Sdn Bhd is Malaysia leading producer, supplier, service provider, distributor and manufacturer. We supply solar panels (thermal), solar power water heater, solar hot water heaters and solar hot water heating system in Malaysia and widely distributed to few states of: Selangor, Seremban, Negeri Sembilan, Kuala Lumpur, Putrajaya, Perak, Penang, Perlis, Kedah, Malacca (Melaka) and Terengganu.

As BWS Sales & Services Sdn Bhd do distribute along Malaysia, our customer can purchase our products such as Summer solar water heater, Puregen water pressure pump, Puregen water filter and MERU storage water heater through our dealers, contractors, designer, engineers, consultants, electrician, installers, suppliers, wholesaler, distributor, renovators, interior designers, plumber and architect that dealing in products such as: sanitary wares, hardware shop, electrical shop, air-conditioners, rain water harvesting, solar photovoltic, electrical water heater, repairing service centers,  roof tiles, roof trusses, house renovation, water pressure pump, water filter system and we marketed our products through online and offline portal.

Online market such as Facebook, company website, lazada, lelong, Mudah, Alibaba, Instagram, iproperty, Google advs, and Telekom yellow.

Offline market
 will be through exhibition like: HomeDec, Perfect livin, House renovation fair, Megahome, Architect fair, Mitec exhibition, MF3, Sunway exhibition, Midvalley exhibition, PWTC exhibition, Setia Alam exhibition, KLCC exhibition and dealers’ canopy sales.

With over 20 years experience knowledge ad experiences on solar water heating systems, BWS Sales & Services have been cooperated with consultants and consulting firms likes QS (quantity surveyors, plumbing company, house developer, Engineers, architects, ID interior designers, roof contractor and consultants for their residential and commercial projects such as: Bungalow houses, double storey house, landed properties, hotels, resorts, factories, hostels, hospital, clubs, fitness clubs, golf club, sports clubs, restaurants and industrial use for pre-heating, and washing to supply and install SOLARMATE solar water heater and solar hot water system.

Our Solar Water Heater Customer Service provide solar water heater repair & service. Supply and install solar water heater spare parts such as heating element, thermostat, pressure temperature valves, and check valves (non return valves).

Today, BWS supply and install SOLARMATE solar water heater in Malaysia and also the market leader that gives customers with 4S philosophy: Sales, Site inspection, Service and spare-part.
